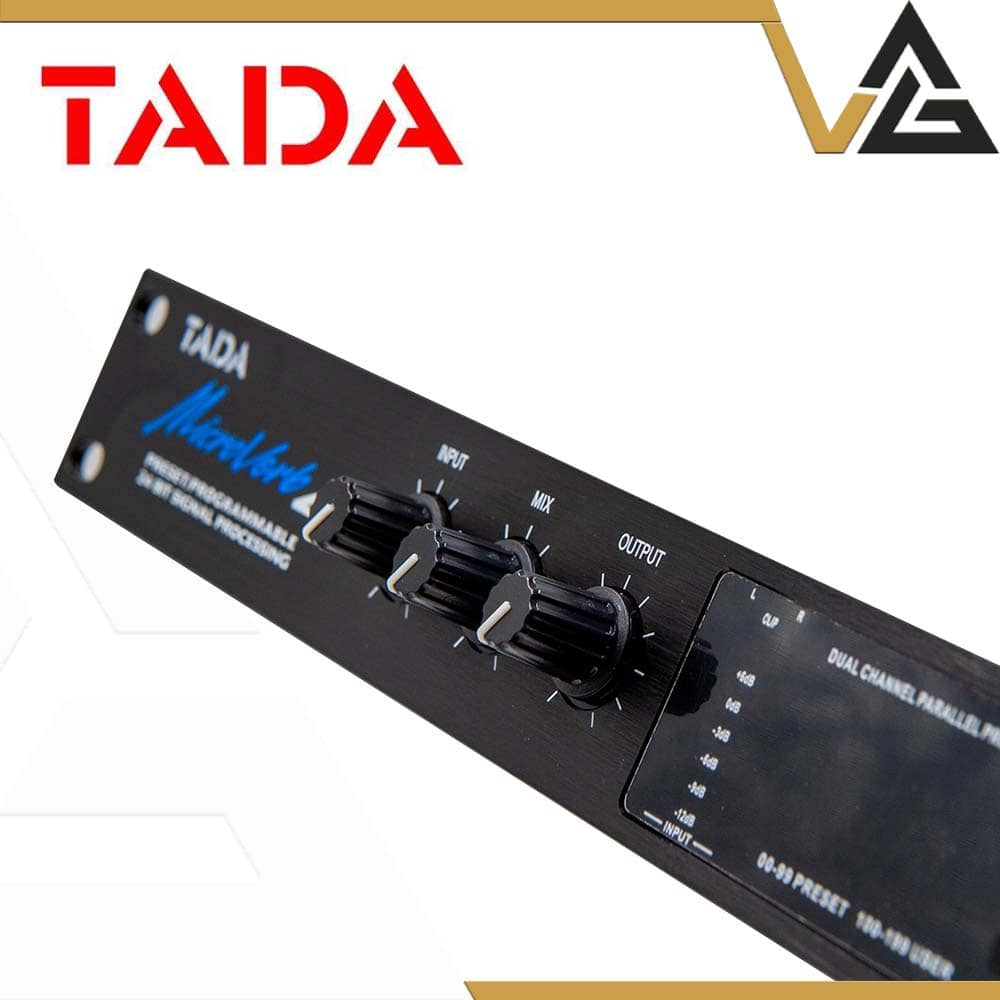

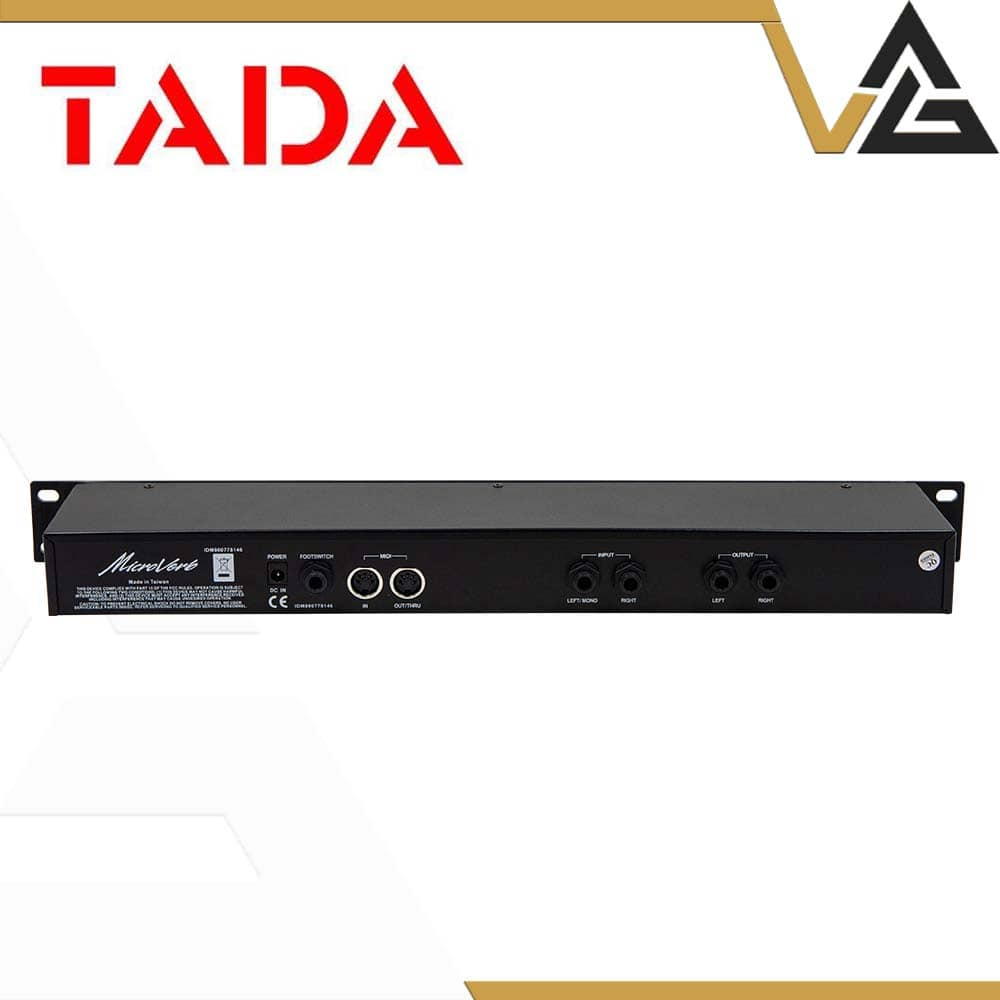

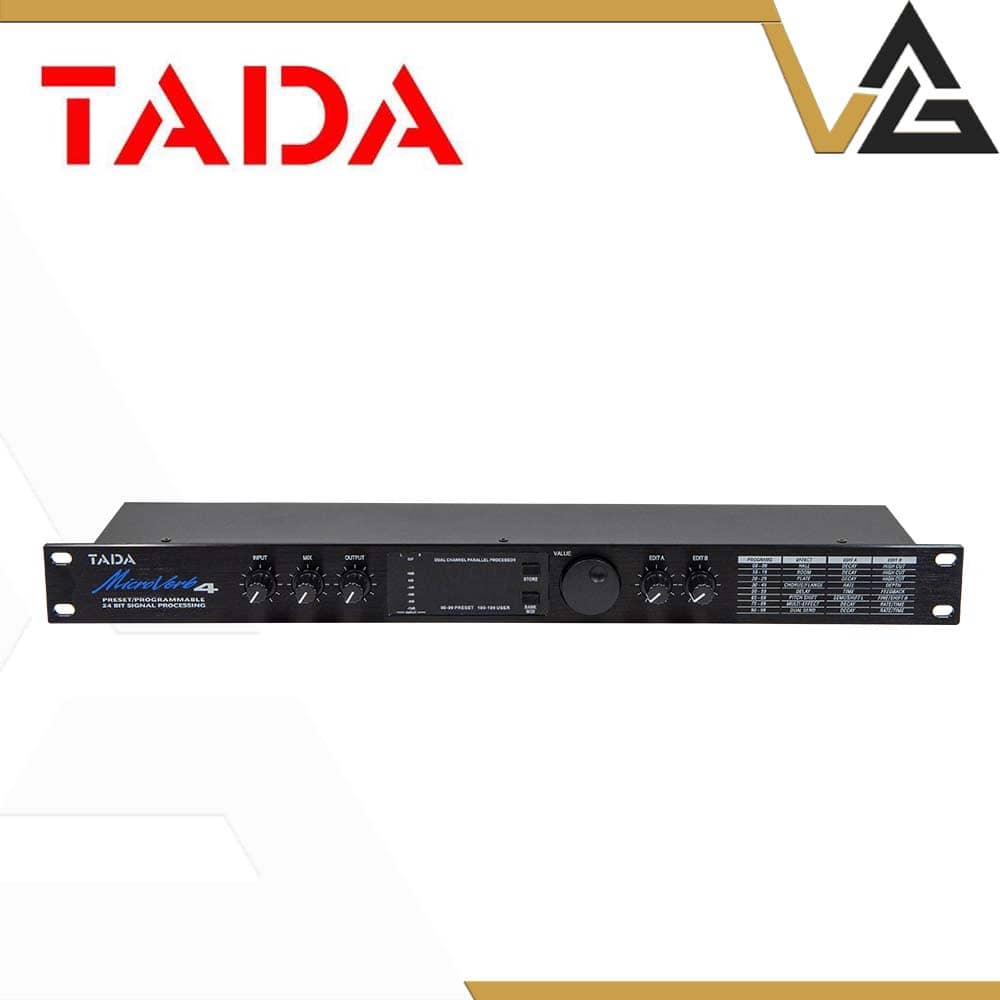

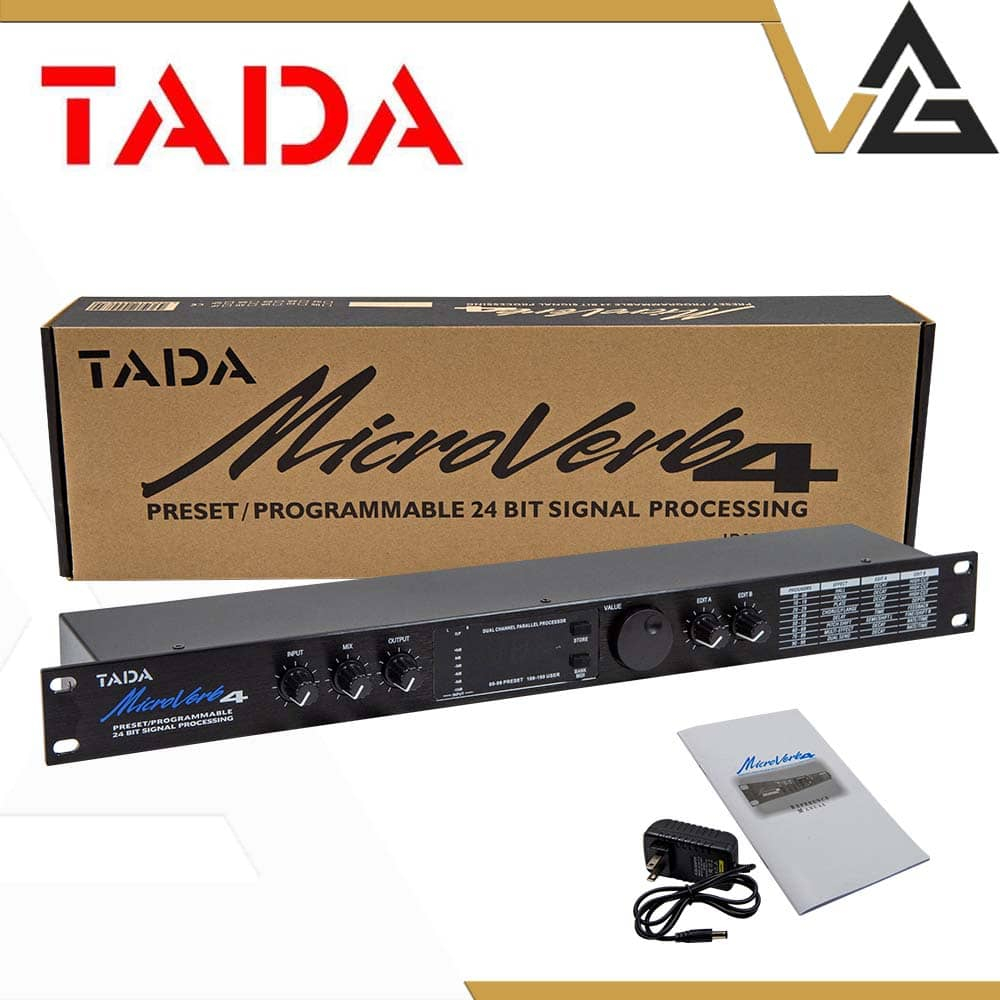

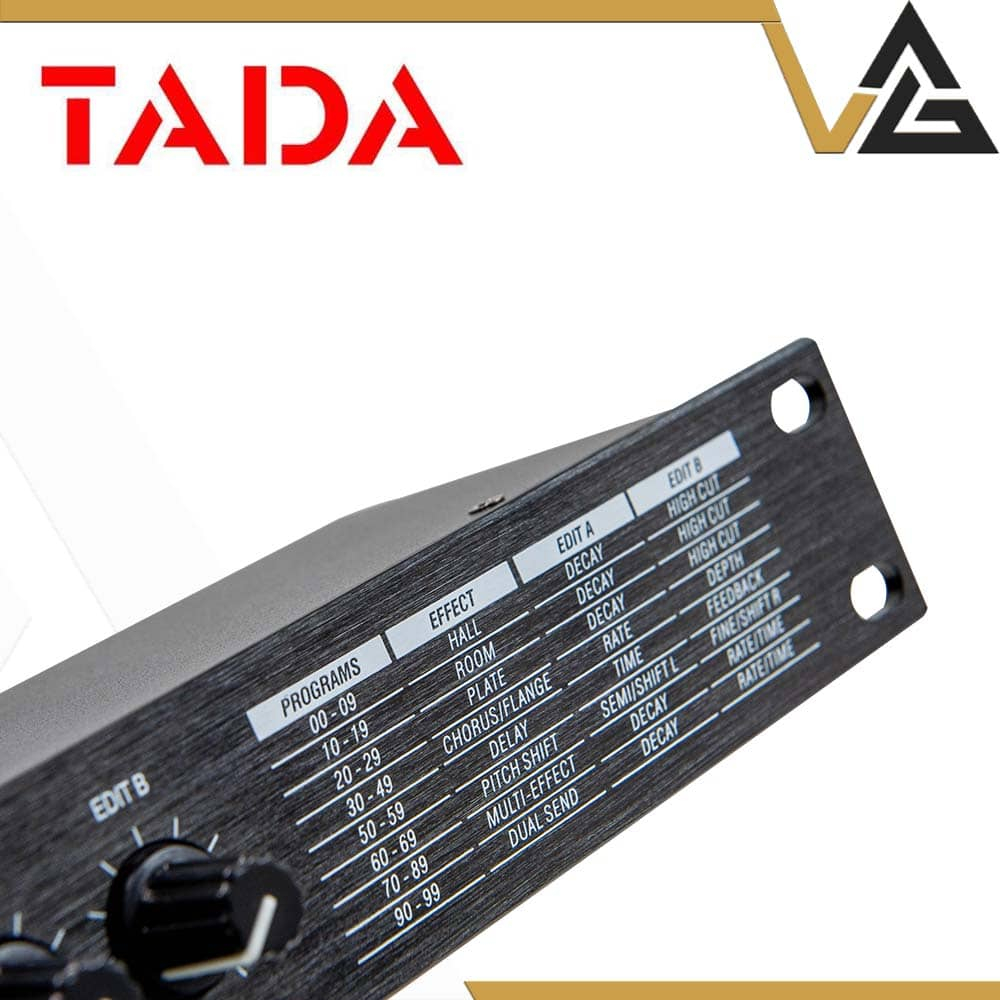

TADA เอฟเฟค Microverb 4 เครื่องปรับแต่งสัญญาณ Special Effects Auto Pan Effect 24 BIT

TADA เอฟเฟค Microverb 4 เครื่องปรับแต่งสัญญาณ Special Effects Auto Pan Effect 24 BIT

• Specification
- Frequency Response: ±1dB from 20Hz to 20 kHz
- Dynamic Range: > 90dB "A" wtg., 20 Hz-22kHz
- Distortion: <0.009% @ 1kHz, nominal level (-12 dBfs)
- <0.005% peak level
- Crosstalk: <90dB below full scale

• Input
Number of Channels: 2
Format: 1/4" unbalanced
Nominal Level: -10 dBV, adjustable to +4 dBv
Maximurn Level: +10 dBV
Impedence: 1MW/channel stereo, 500kW/channel mono
A/DD/A Conversions
Processor Speed: 3 MIPs (million instructions per second)
Processor Memory: 64K x 16 bits
A/D converter. 18 bit Sigma-Delta, 128 times oversampling
D/A converter: 18 bit Sigma-Delta, 8 times oversampling

• Output
Number of Channels: 2
Format: 1/4" unbalanced
Maximum Level: +17.5dBu
Nominal Level -20 dBV or +4dBu, front- panel adjustable
Output Impedance: 500 ohms
actory Preset Programs (ROM): 100
Intermal processing resolution: 24 bit accumulator
Delay memory: 1270 milliseconds
